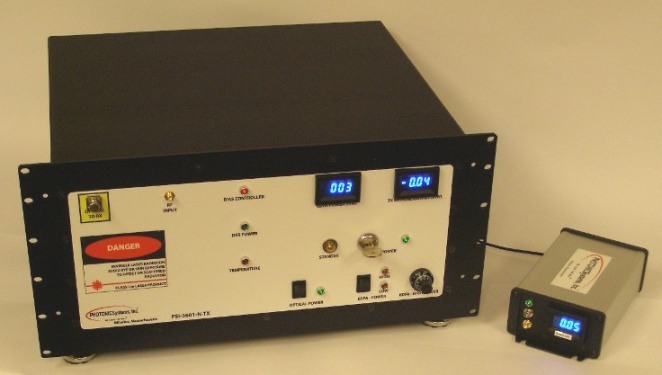

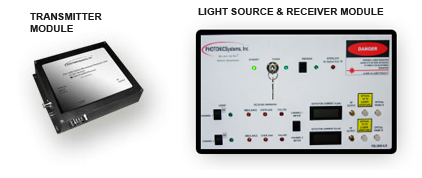

PSI - 3600 SERIES

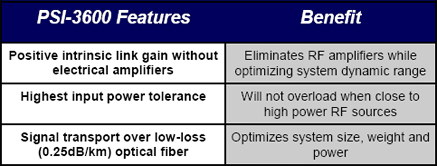

The PSI-3600 series is a family of high-performance microwave photonic links and components that offer the highest level of system performance available on the market. The PSI-3601 is a unique amplifierless link offering wide dynamic range and low noise figure with positive intrinsic gain. This system completely eliminates the need for an electrical RF amplifier in many applications. Also available is a narrowband version, PSI-3600-N which is optimized for operation with channelized bandwidths of less than one octave within a total possible operating bandwidth of 18 GHz. This link offers dynamic range of better than 120 dB in 1 Hz. These levels of system performance are enabled through leading-edge component design powered by world class system design. Custom packaging and specification configurations are commonly provided to meet application needs.

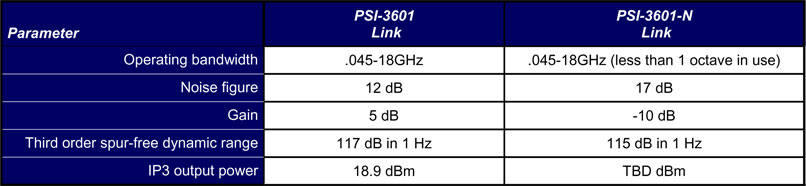

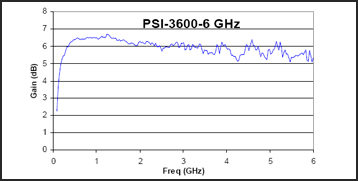

TYPICAL PERFORMANCE, 25°C @ 6 GHz





APPLICATIONS

ELINT systems
Remote antenna distribution
Phased array radar
Optical delay lines




DATA SHEETS
PSI 3600 Series Microwave Photonics Link Specification Sheet
PSI Microwave Photonics Link Product Family
